SPECIFICATIONS

Brand Name: Douk Audio

Certification: CE

Channels: 2 (2.0)

DOUK AUDIO Model: K5

Hign-concerned Chemical: None

Maximum Power Per Channel: NO POWER

Model Number: K5

Origin: Mainland China

Package: Yes

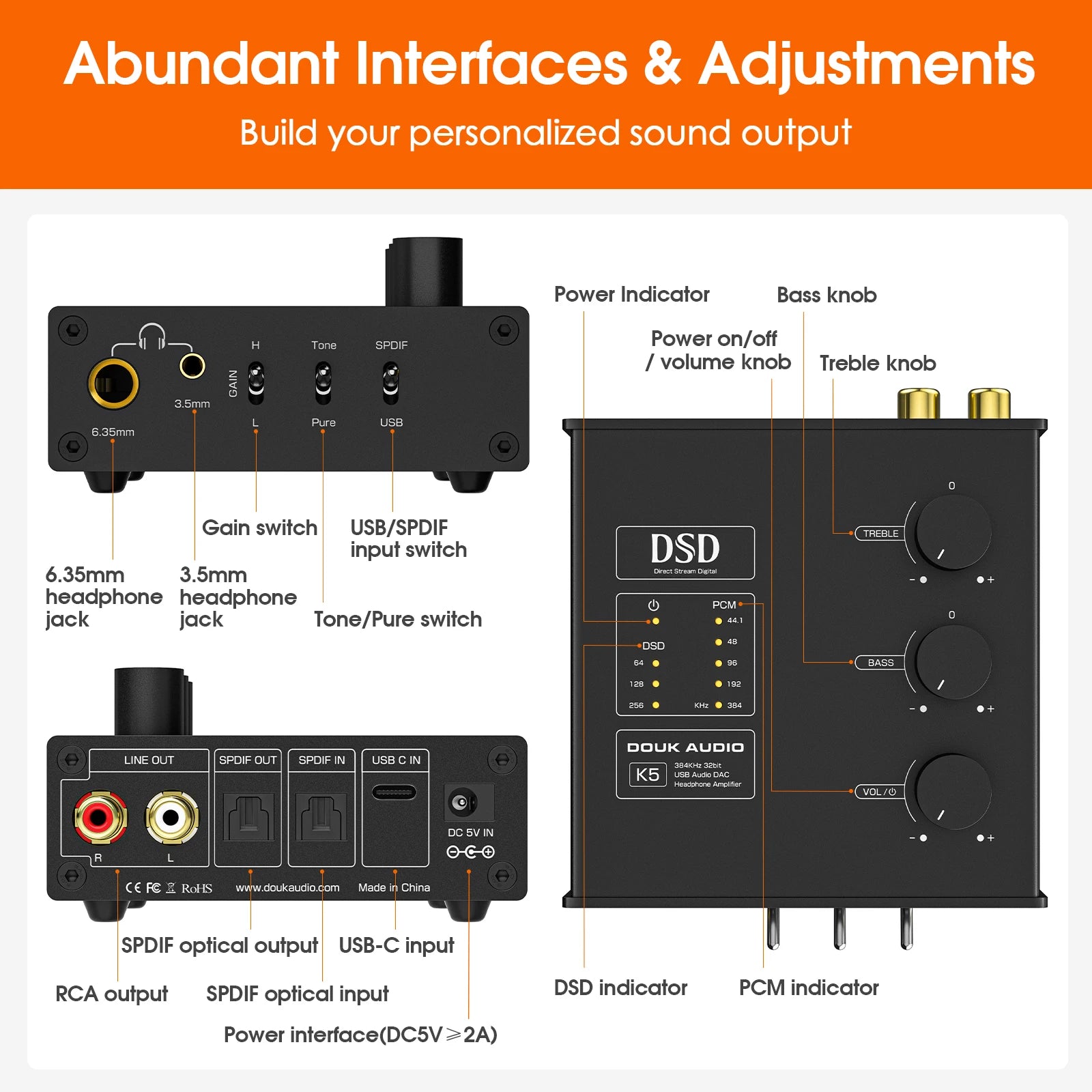

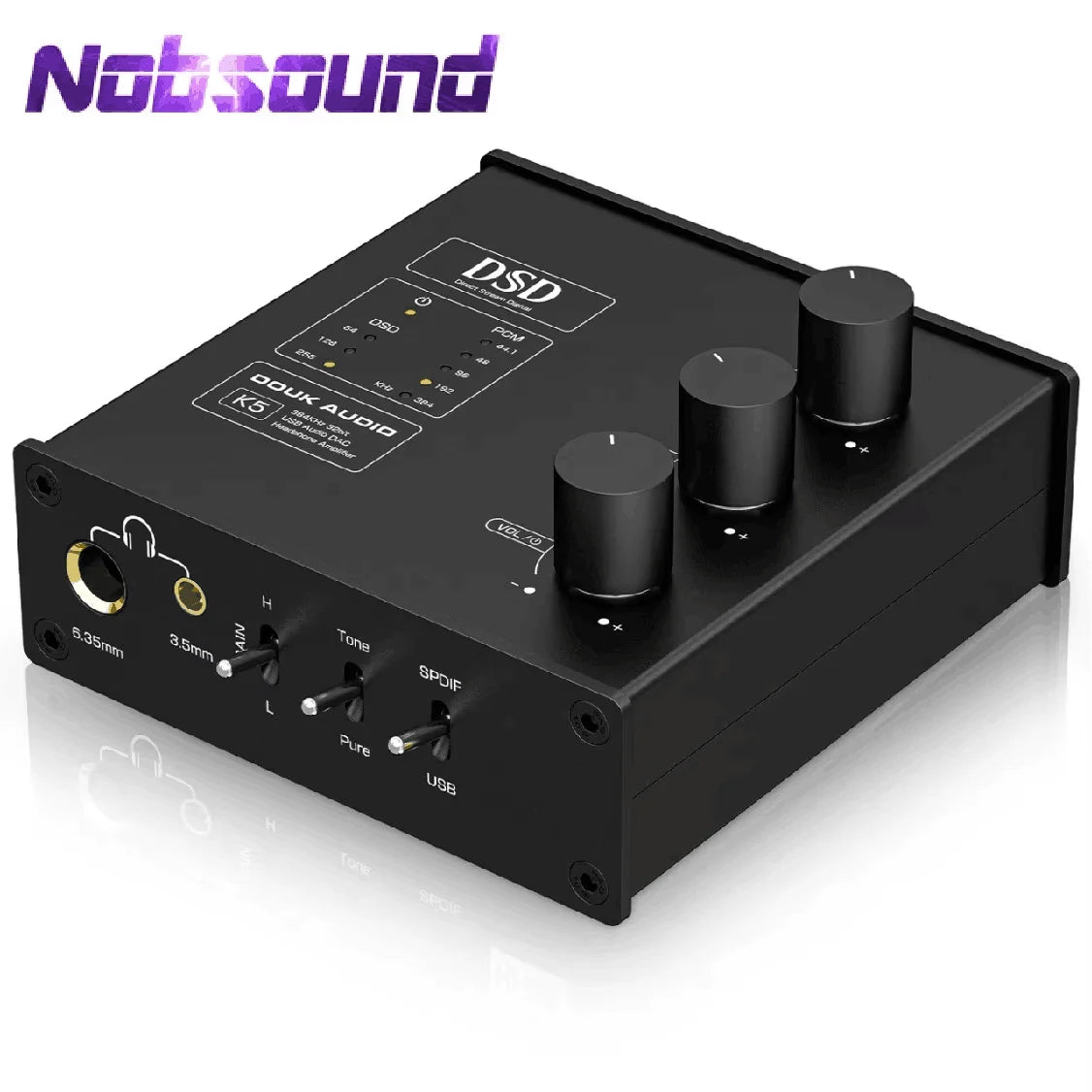

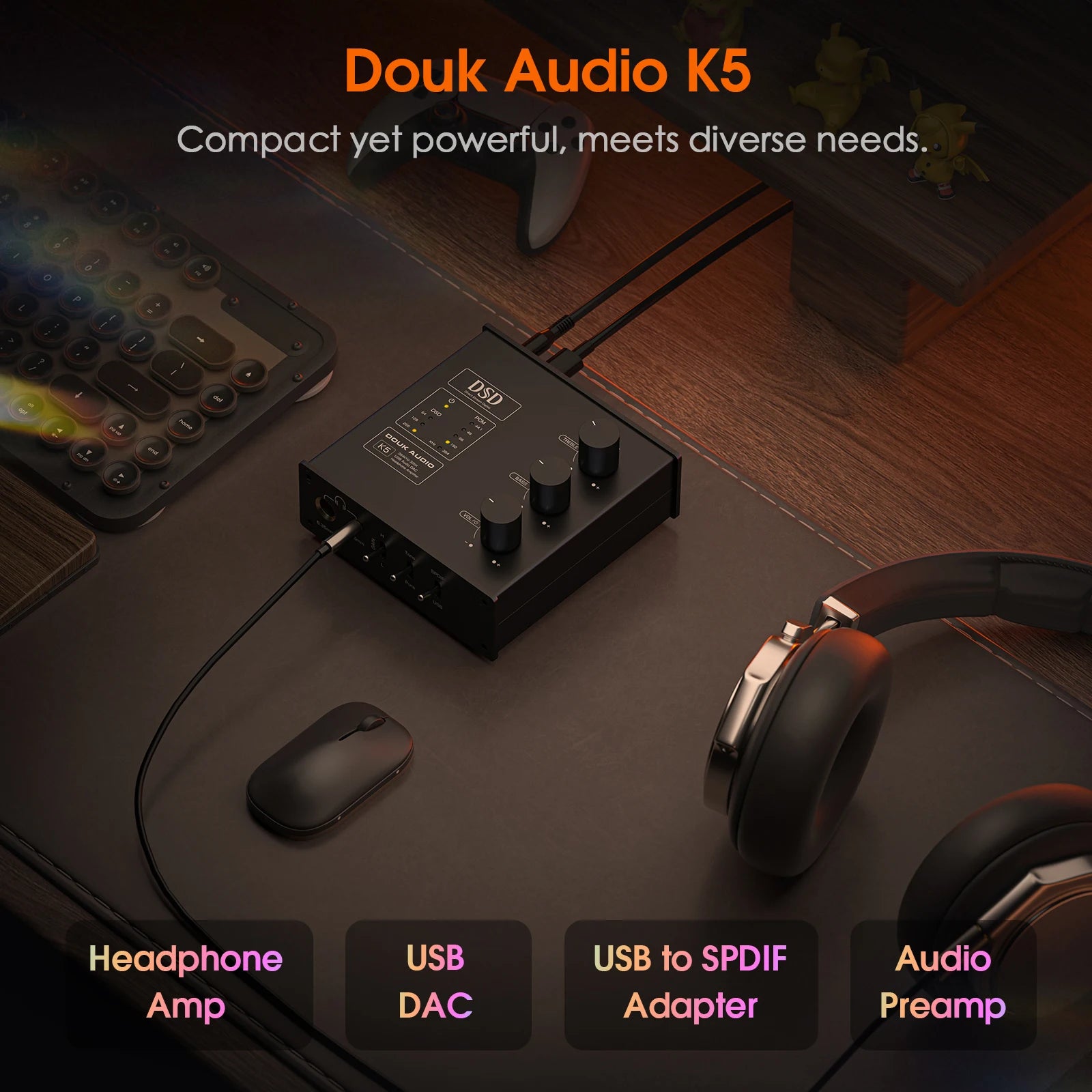

• Douk Audio K5 USB DAC & Headphone Amp: Featuring USB and SPDIF optical inputs, as well as optical, RCA and 6.35/3.5mm jack outputs, the K5 serves as a high-performance headphone amplifier, a USB DAC, a preamp, but also a USB to optical converter to transmit the high-quality audio from the computer to those audio devices only with SPDIF digital input such as CD players, amplifiers and active speakers etc.

• High-end Chipset and Top-level Parameters: The K5 adopts ESS9038Q2M (DAC), SA9312 (DSP), OPA1678 (LPF) and SGM8262 (amp) op-amps, and supports PCM 32bit/384kHz high-resolution decoding and DSD256 playback. Its excellent circuit design ensures superior performance with a SNR over 121dB, a low noise floor of only 3μV and an incredibly low THD of 0.0007%, K5 delivers an exceptional listening pleasure with its ultra-pure sound.

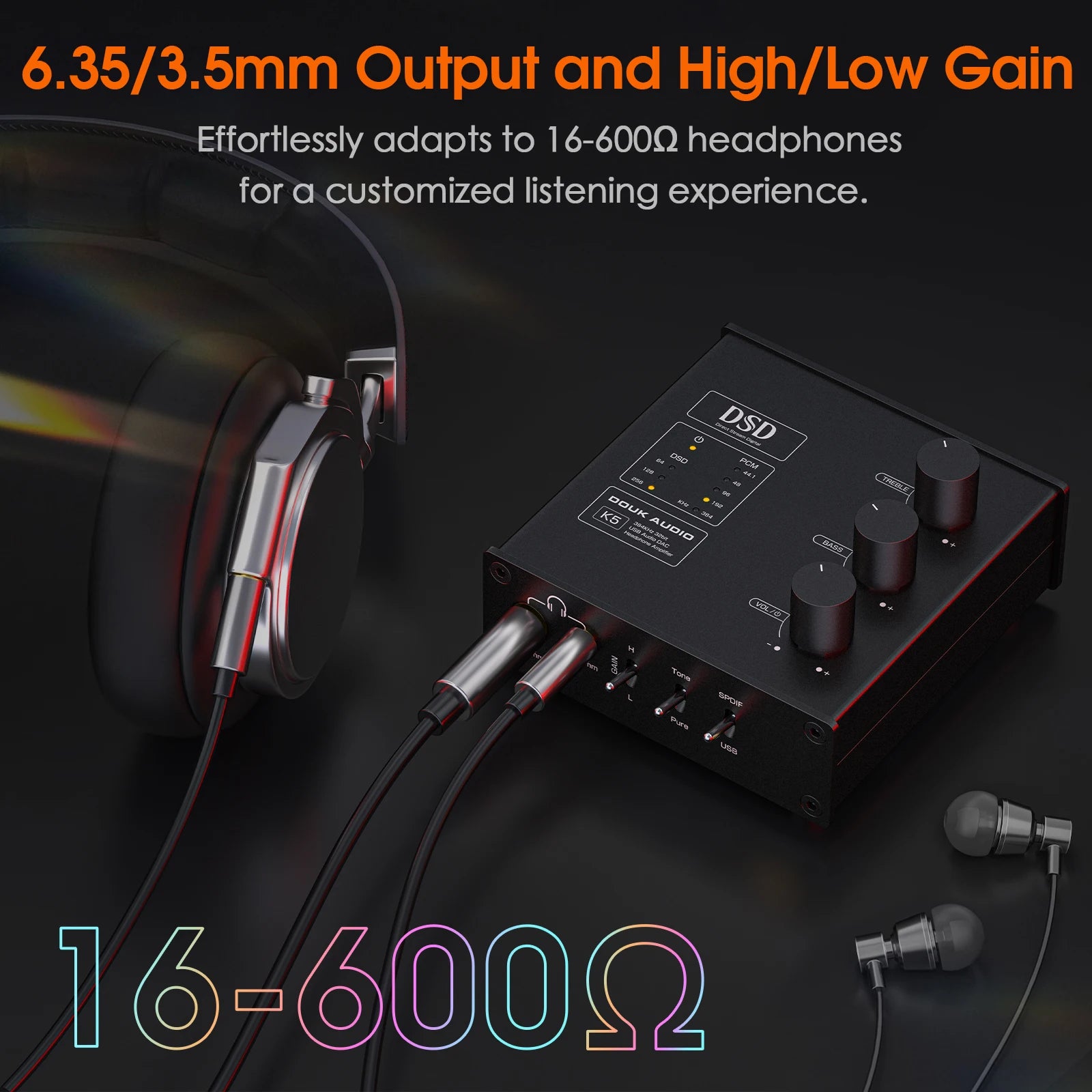

• Strong Power and High/Low Gain Modes: K5 supports dual 6.35/3.5mm headphone outputs and provides robust power of 560mW/470mW@32Ω per channel to effortlessly unleash the best performance of your headphones. Specially designed with high and low gain modes, flexibly adapt to all headphones of a wide impedance range from 16Ω to 600Ω and tailor your own listening experience.

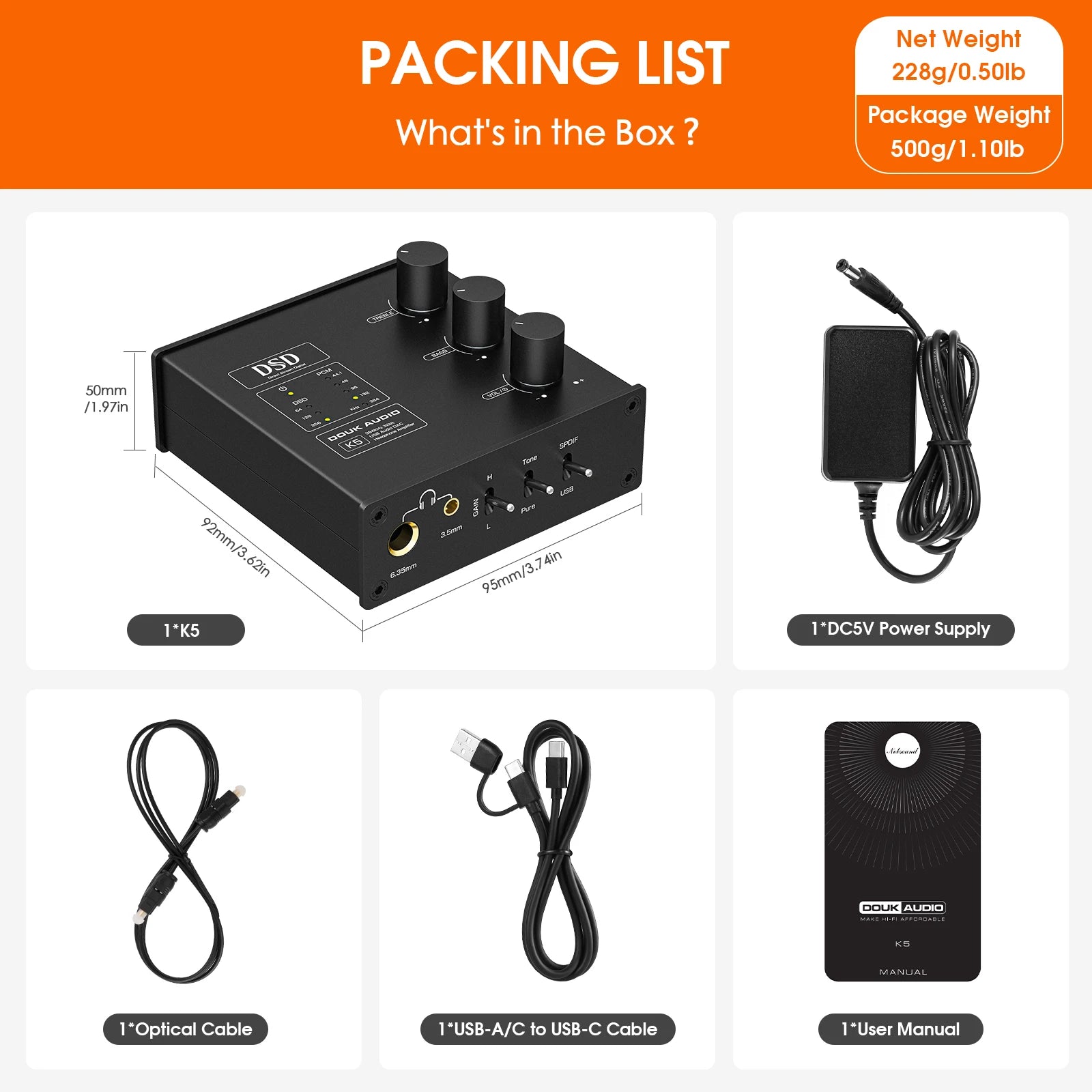

• Tone Control with Bypass and Gain Switch: Treble and bass with midpoint positioning for perfect balance, the K5 also features a bypass function to remove all tone controls, allowing you to enjoy the purest sound by toggling the switch to PURE. The USB Type-C input can power the K5 directly with sufficient current, it also has an external power port and includes a 2-in-1 USB cable (Type-C and USB-A) for broader compatibility and optimal performance.

• User-Friendly Design for Easy Operation: Besides input, tone and gain one-click switch , the K5 also integrated the volume and power button into one to simplify the use; with colorful LED indicators, clearly show the current working mode and sampling rate; aluminum alloy body and CNC-molded, compact but durable and reliable, very suitable for those who pursue HIFI sound.
